Y-Packet 2 NLOS

2 & 4L/U GHZ

CAPACITY UP TO 1 GBPS

UP TO 80 km

ANTI-THEFT

LOW CAPEX AND OPEX

TOUCHLESS CONFIGURATION

arrow

Анализатор цепей скалярный, 0,01…4 ГГц с опцией «01P»

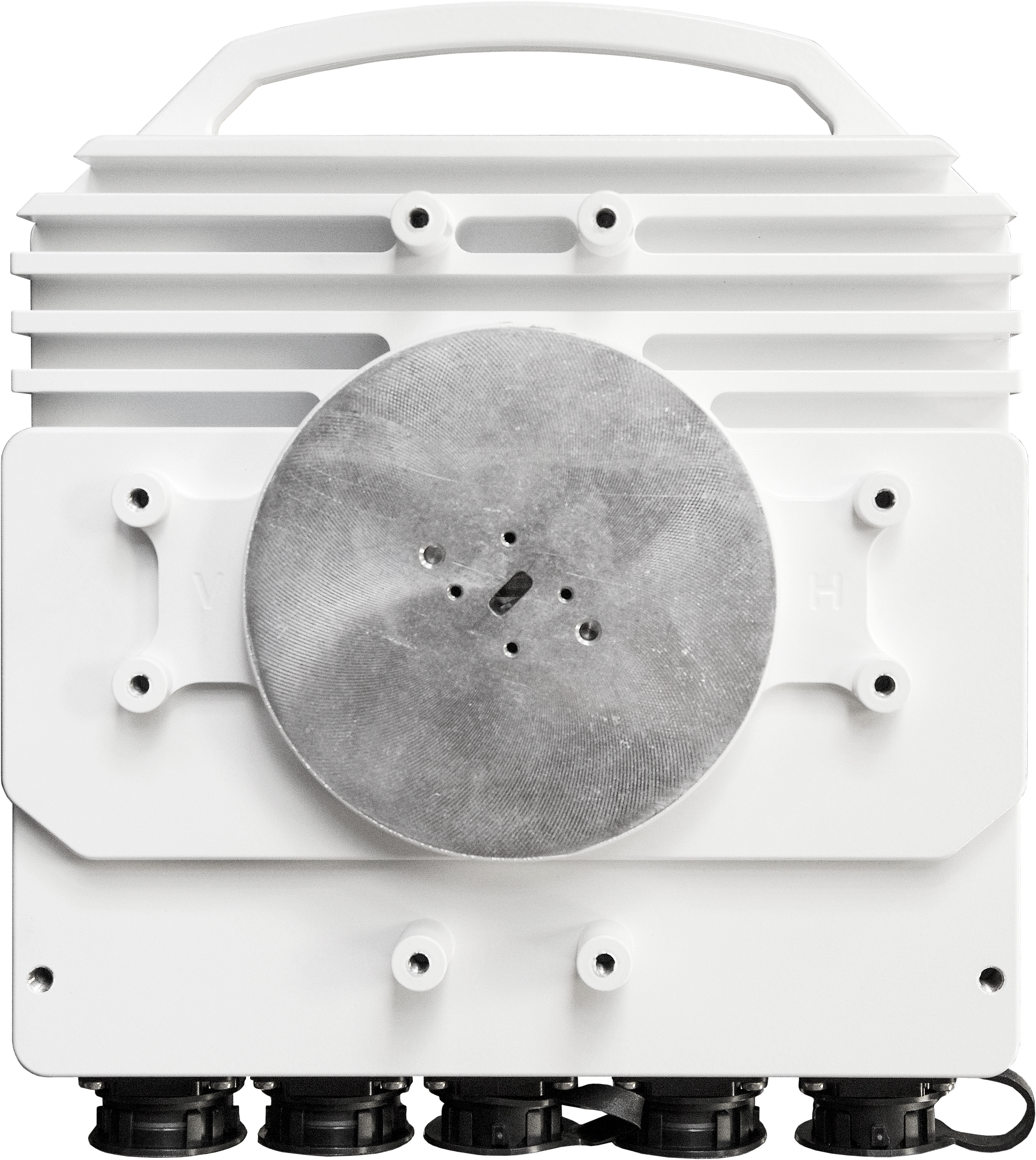

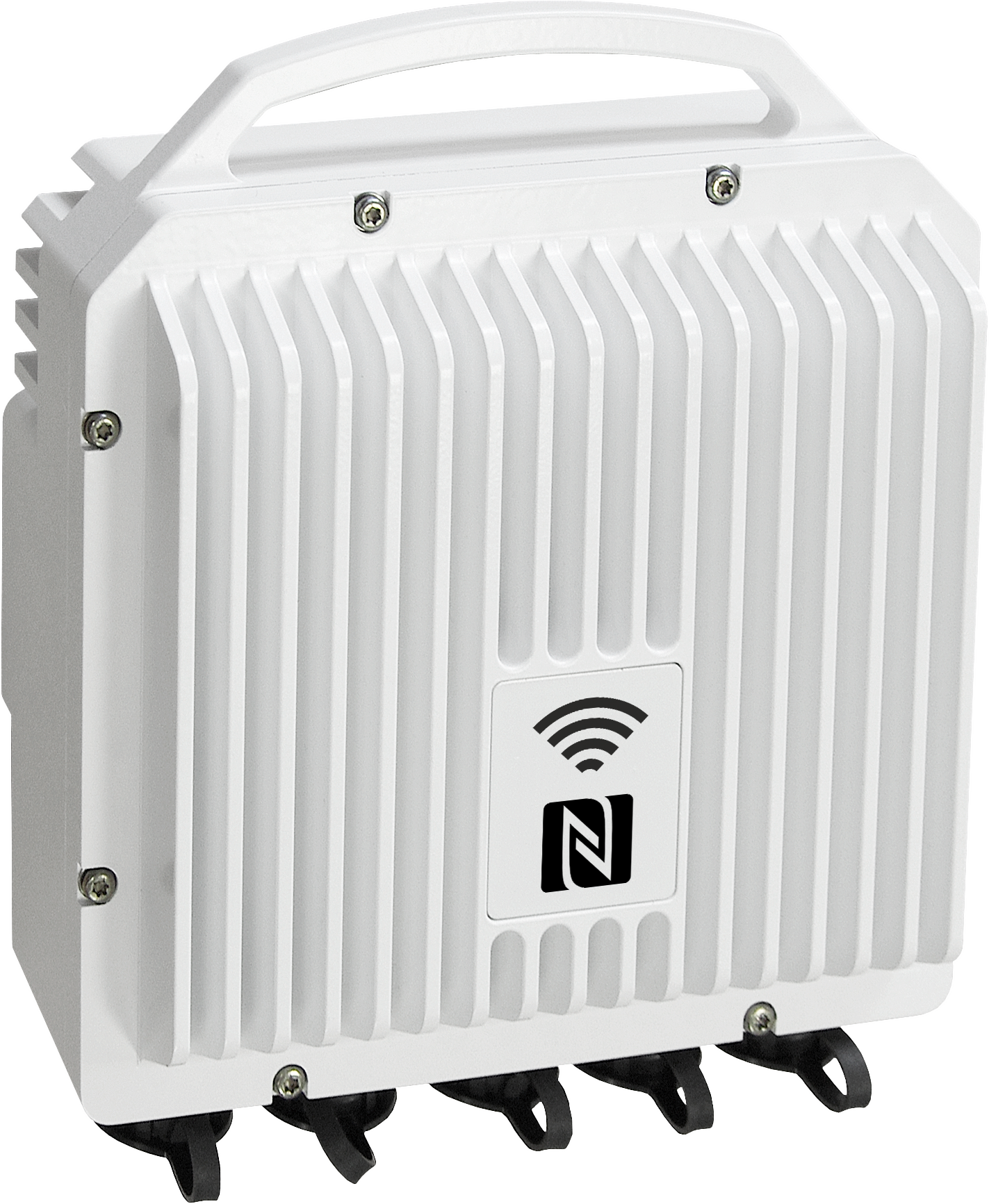

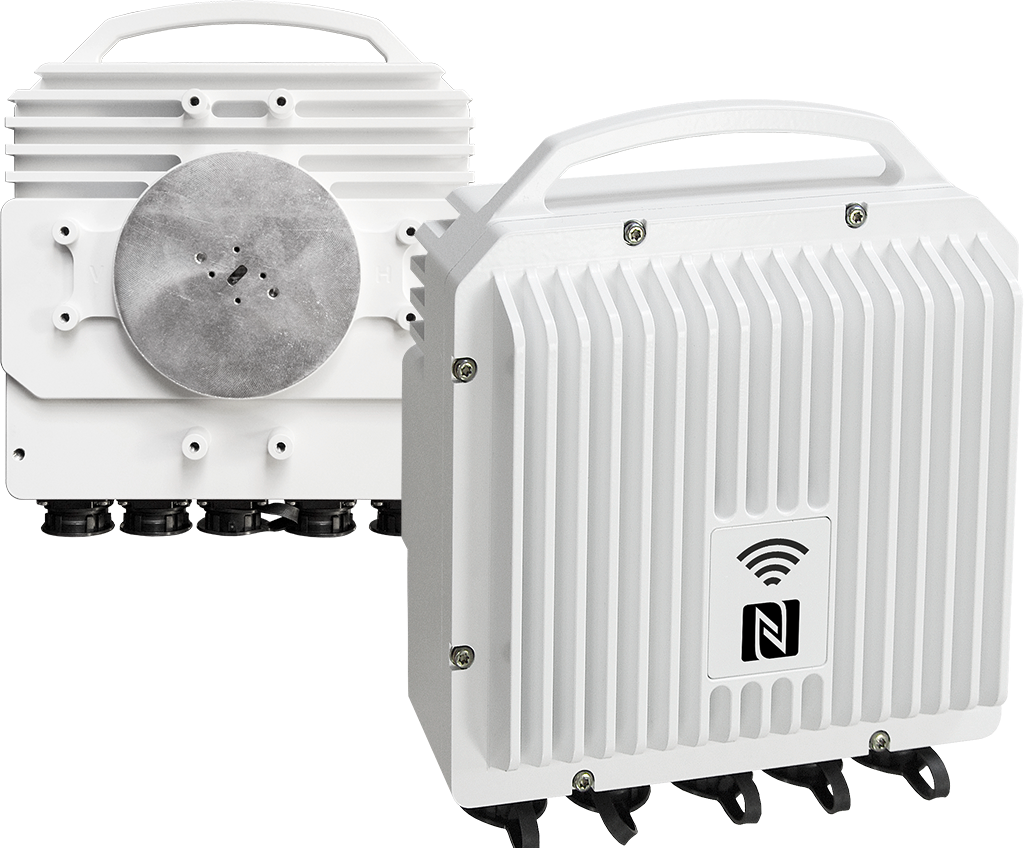

Y-Packet 2 nLOS is a high-capacity radio conceived with full outdoor approach that covers 2, 4L / 4U GHz frequency bands. Y-Packet 2 nLOS is easy to configure, manage and monitor.

Y-Packet 2 nLOS is designed specifically for the organization of networks in remote or inaccessible areas, providing high capaity data transfer over links up to 80 kilometers even in nLOS conditions.

The nLOS radio implements state-of-the-art technologies, such as XPIC jointly with Radio Link Aggregation. Y-Packet 2 provides a capacity up to 1 Gbps at 56 MHz bandwidth and 1024 QAM and can be configured as 1+1 HSB for link protection, XPIC with Radio Link Aggregation or repeater.

Y-Packet 2 nLOS provides a web management Interface based on AJAX technology – touchless configuration. Thanks to the in-built NFC chip all parameters can be set just by putting a smartphone close to the radio even it is unpowered.

Specification

Y-Packet 2 nLOS
