Power meters M3M series

Frequency range 10 MHz to 18 GHz

Wide Dynamic range −60 dBm to +20 dBm

High Accuracy up to ±0.33 dB

Lightweight and rugged

Simple set-up and usage

Up to 16 hours with built-in accumulator battery


Анализатор цепей скалярный, 0,01…4 ГГц с опцией «01P»

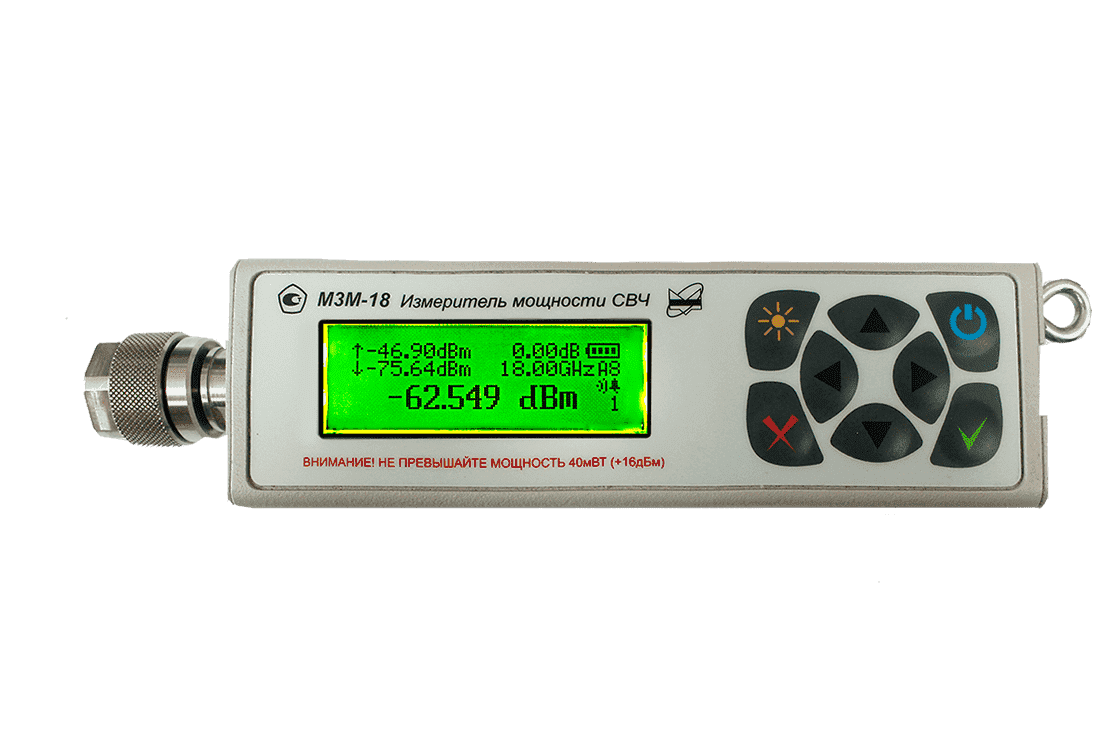

M3M-18 power meter uses for measuring the power level of continuous wave (CW) RF and Microwave signal. Power supply is performed via internal accumulator battery. For a transductive element we use a diode detection section which allows measurements in wide dynamic and frequency ranges.
Among M3M-18 applications are research, alignment, testing, control and manufacturing of microwave devices used in radioelectronics, communications, radars and T&M equipment.


M3M power meters
