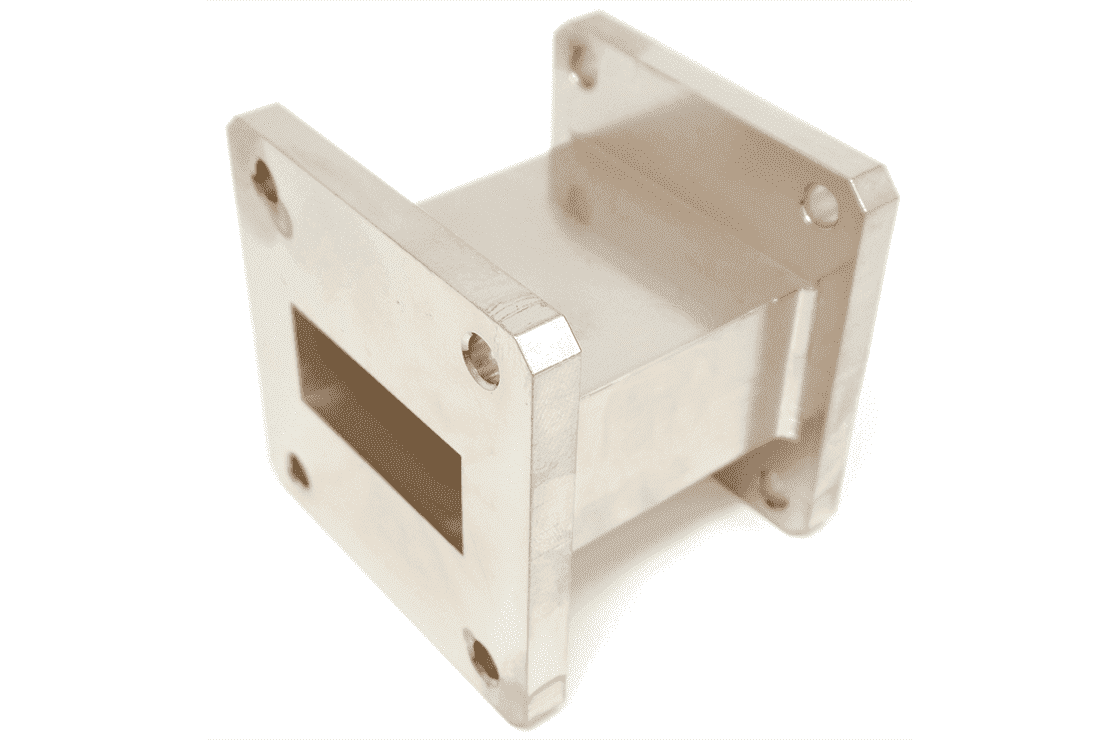

Waveguide-Waveguide adapters
High performance stability for multitude of connections
Operating temperature: −60...+85 °C
Low losses and refraction
Анализатор цепей скалярный, 0,01…4 ГГц с опцией «01P»
|
Marking |
Tract sizes, mm |
Frequency range, GHz |
|---|---|---|
|
Waveguide-waveguide adapter PVV1-28.5×12.6-WR112 |
28.5×12.6 – 28,499×12,624 |
6,85…9,93 |
|
Waveguide-waveguide adapter PVV1-23×10-WR90 |
23×10 – 22,860×10,160 |
8,2…12,05 |
|
Waveguide-waveguide adapter PVV1-23×10-23×5 |
23×10 – 23×5 |
9…11 |
|
Waveguide-waveguide adapter PVV1-23×10-23×3 |
23×10 – 23×3 |
9…11 |
|
Waveguide-waveguide adapter PVV1-23×10-23×2 |
23×10 – 23×2 |
9…11 |
|
Waveguide-waveguide adapter PVV1-16×8-WR62 |
16×8 – 15,799×7,899 |
12,05…17,44 |
|
Waveguide-waveguide adapter PVV1-19×9.5-WR75 |
19×9.5 – 19,05×9,525 |
9,93…14,71 |
|
Waveguide-waveguide adapter PVV1-11×5.5-WR42 |
11×5.5 – 10,668×4,318 |
17,6…25,95 |
|
Waveguide-waveguide adapter PVV1-7.2×3.4-WR28 |
7.2×3.4 – 7,112×3,556 |
26,3…37,5 |
|
Waveguide-waveguide adapter PVV1-5.2×2.6-WR22 |
5.2×2.6 – 5,690×2,845 |
37,5…50,1 |
|
Waveguide-waveguide adapter PVV1-5.2×2.6Sh-WR22 |
5.2×2.6 – 5,690×2,845 |
37,5…50,1 |
|
Waveguide-waveguide adapter PVV1-4.4×2.2-WR19 |
4.4×2.2 – 4,775×2,388 |
44,09…59,2 |
|
Waveguide-waveguide adapter PVV1-4.4×2.2Sh-WR19 |
4.4×2.2 – 4,775×2,388 |
44,09…59,2 |
|
Waveguide-waveguide adapter PVV1-3.6×1.8-WR15 |
3.6×1.8 – 3,759×1,88 |
53,57…75,8 |
|
Waveguide-waveguide adapter PVV1-3.6×1.8Sh-WR15 |
3.6×1.8 – 3,759×1,88 |
53,57…75,8 |
|
Waveguide-waveguide adapter PVV1-3×1.5-WR12 |
3×1.5 – 3,098×1,549 |
63,79…91,9 |
|
Waveguide-waveguide adapter PVV1-3×1.5Sh-WR12 |
3×1.5 – 3,098×1,549 |
63,79…91,9 |
|
Waveguide-waveguide adapter PVV1-WR10-WR10 |
2.54×1.27 – 2,54×1,27 |
73,8…112 |
|
Waveguide-waveguide adapter PVV1-WR12-WR12 |
3.0988×1.5494 – 3,0988×1,5494 |
60,5…91,9 |
|
Waveguide-waveguide adapter PVV1-WR19-WR19 |
4.775×2.388 – 4,775×2,388 |
39,2…59,6 |
Specification
| Waveguide-to-waveguide adapters |
