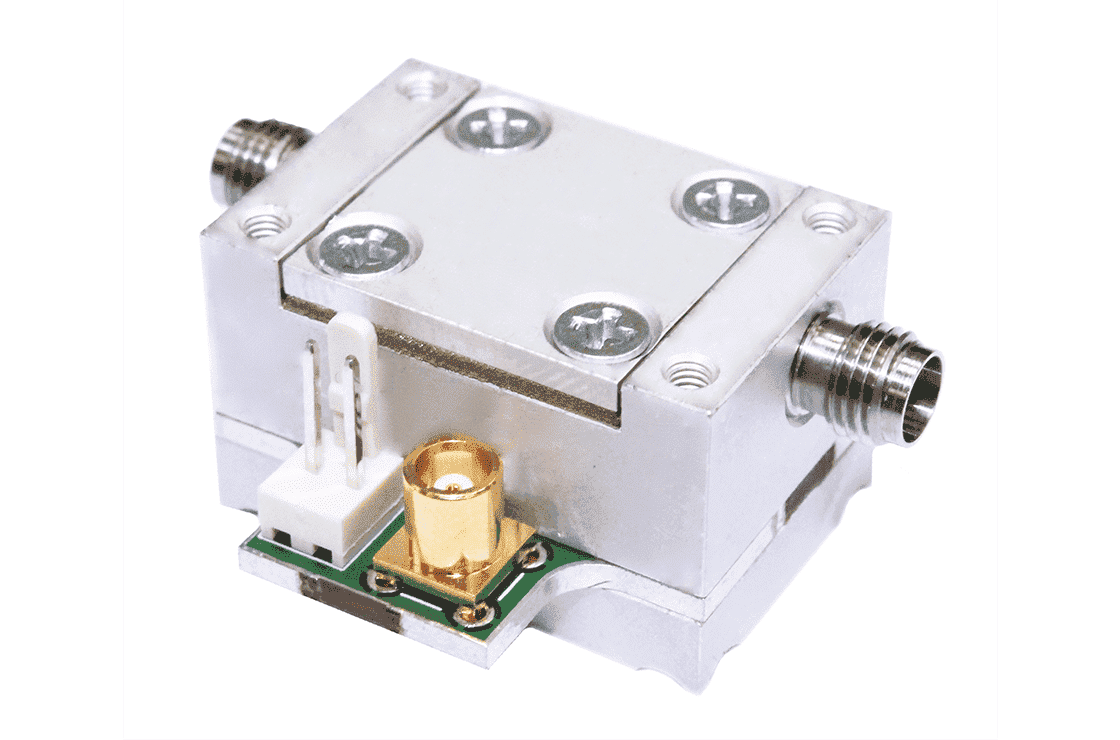

Pulse modulator IM-20

Wide Frequency Range: 10 MHz...20 GHz

High Pause Power Mitigation: ≥ 70 dB

Signal Radio Impulse < 10 ns

Parallel Data Input

Input/Output Modulator Ports

arrow

Анализатор цепей скалярный, 0,01…4 ГГц с опцией «01P»

IM Impulse modulators are perfectly suited for impulse modulation of continuous harmonic signals. Due to small size, IM-20 blocks can be imbedded inside of different equipment. These devices are manufactured with a 3.5 mm RF coaxial connector.

Specification

Pulse modulator IM-20
