Cable Assemblies

Shield attenuation min. 100 dB

Wear-resistant coating, cable protection

High parameters stability

Operating temperature: −60 °C...+85 °C

Add to cart
Add to favorite
arrow

Анализатор цепей скалярный, 0,01…4 ГГц с опцией «01P»

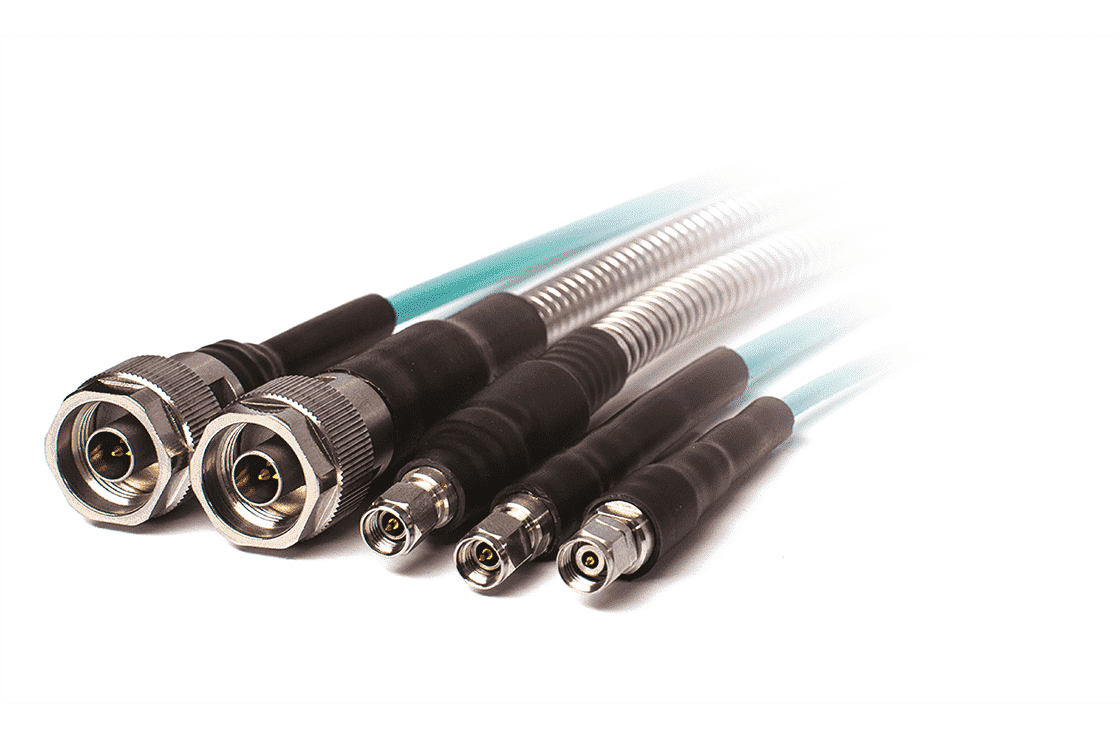

Microwave cable assemblies are intended for the connection of devices to ports of the measurement equipment. Cable assemblies with connectors " male-male", female-female" and «female-male» with inch or metric thread of 7,0 / 3,04 mm and 3,5 / 1,52 mm tracts. The assemblies of series KSA are supplied with an external metal protection with 10.5 mm diameter. Cable assemblies of this series provide minimum insertion loss and reflection coefficient. On request, cable assemblies can be supplied with a maximum operating temperature of up to +110 ° C. When ordering, it is possible to choose a cable length from 200 mm to 15 m.


Marking


Connectors

Protection availability

Frequency range, GHz

VSWR,

max (type)

Inserted losses on 1 m, dB,

max.

KS18А-01R-01R


—









1,2

(1.15)








1.6

KSА18А-01R-01R

Type III (female) – Type III (female)

Available


KS18D-01R-01R


—


1

KS18A-01R-11R


—

1,6

KSА18А-01R-11R

Type III (female) – Type N (female)

Available


KS18D-01R-11R


—


1

KS18А-11R-11R


—

1,6

KSА18А-11R-11R

Type N (female) – Type N (female)

Available


KS18D-11R-11R


—


0…18

1

KS18А-01-01


Type III (male) – Type III (male)

—

1.6

KSА18А-01-01

Available

KS18D-01-01

—

1

KS18А-01-11


—


1.6

KSА18А-01-11

Type III (male) – Type N (male)

Available


KS18D-01-11


—


1

KS18А-11-11


—


1.6

KSА18А-11-11

Type N (male) – Type N (male)

Available


KS18D-11-11


—


1

KS18А-01R-01


—

1.6

KSА18А-01R-01

Type III (female) – Type III (male)

Available


KS18D-01R-01


—


1

KS18А-01R-11


Type III (female) – Type N (male)

—





0…18




1.2

(1.15)

1.6

KSА18А-01R-11

Available

KS18D-01R-11

—

1

KS18А-11R-01


Type N (female) – Type III (male)

—

1.6

KSА18А-11R-01

Available

KS18Д-11R-01

—

1

KS18А-11R-11


Type N (female) – Type N (male)

—

1.6

KSА18А-11R-11

Available

KS18D-11R-11

—

1

KS18А-01R-03R

Type III (female) – Type IX, opt. 3 (female)

—










1.2

(1.15)










KSА18А-01R-03R

Available



KS18А-01R-13R

Type III (female) – Type 3.5 mm (female)

—

KSА18А-01R-13R

Available



KS18А-11R-03R

Type N (female) – Type IX, opt. 3 (female)

—

KSА18А-11R-03R

Available



KS18А-11R-13R

Type N (female) – Type 3.5 mm (female)

—

KSА18А-11R-13R

Available



KS18А-01-03

Type III (male) – Type IX, opt. 3 (male)

—

KSА18А-01-03

Available



KS18А-11-03

Type N (male) – Type IX. opt. 3 (male)

—

KSА18А-11-03

Available



KS18А-11-13

Type N (male) – Type 3.5 mm (male)

—

KSА18А-11-13

Available



KS18А-01-13

Type III (male) – Type 3.5 mm (male)

—

KSА18А-01-13

Available

0…18

1.6

KS18А-01R-03

Type III (female) – Type IX, opt. 3 (male)

—

KSА18А-01R-03

Available



KS18А-01R-13

Type III (female) – Type 3.5 mm (male)

—

KSА18А-01R-13

Available



KS18А-11R-03

Type N (female) – Type IX, opt. 3 (male)

—

KSА18А-11R-03

Available



KS18А-11R-13

Type N (female) – Type 3.5 mm (male)

—

KSА18А-11R-13

Available



KS18А-01-03R

Type III (male) – Type IX, opt. 3 (female)

—

KSА18А-01-03R

Available



KS18А-01-13R

Type III (male) – Type 3.5 mm (female)

—

KSА18А-01-13R

Available



KS18А-11-03R

Type N (male) – Type IX, opt. 3 (female)

—

KSА18А-11-03R

Available



KS18А-11-13R

Type N (male) – Type 3.5 mm (female)

—

KSА18А-11-13R

Available



KS20А-03R-03R

Type IX, opt. 3 (female) – Type IX, opt. 3 (female)

—











1.2

(1.15)

1.2

(1.15)












KSА20А-03R-03R


Available



KS20А-03R-13R

Type IX, opt. 3 (female) – Type 3.5 mm (female)

—



KSА20А-03R-13R

Type IX, opt. 3 (female) – Type 3.5 mm (female)

Type 3.5 mm (female) – Type 3.5 mm (female)

Available



KS20А-13R-13R

—





KSА20А-13R-13R

Type 3.5 mm (female) – Type 3.5 mm (female)

Type IX, opt. 3 (male) – Type IX, opt. 3 (male)

Available

KS20А-03-03

—





KSА20А-03-03

Type IX, opt. 3 (male) – Type IX, opt. 3 (male)

Type IX, opt. 3 (male) – Type 3.5 mm (male)

Available

KS20А-03-13

—


0…20


1.9

KSА20А-03-13

Type IX, opt. 3 (male) – Type 3.5 mm (male)

Type 3.5 mm (male) – Type 3.5 mm (male)

Available

KS20А-13-13

—

0…20


1.9


KSА20А-13-13

Type 3.5 mm (male) – Type 3.5 mm (male)

Type IX. opt. 3 (female) – Type IX, opt. 3 (male)

Available

KS20А-03R-03

—





KSА20А-03R-03

Type IX, opt. 3 (female) – Type IX, opt. 3 (male)

Type IX, opt. 3 (female) – Type 3.5 mm (male)

Available

KS20А-03R-13

—





KSА20А-03R-13

Type IX, opt. 3 (female) – Type 3.5 mm (male)

Type 3.5 mm (female) – Type IX, opt. 3 (male)

Available

KS20А-13R-03

—





KSА20А-13R-03

Type 3.5 mm (female) – Type IX, opt. 3 (male)

Type 3.5 mm (female) – Type 3.5 mm (male)

Available

KS20А-13R-13

—







KSА20А-13R-13


Type 3.5 mm (female) – Type 3.5 mm (male)

Available


KS40В-14R-14R

Type 2.92 mm (female) – Type 2.92 mm (female)

—



0…40



1.3

(1.25)



2.9

KSА40В-14R-14R

Available

KS40В-14-14

Type 2.92 mm (male) – Type 2.92 mm (male)

—

KSА40В-14-14

Available

KS40В-14R-14

Type 2.92 mm (female) – Type 2.92 mm (male)

—

KSА40В-14R-14

Available

KS40А-05R-05R

Type 2.4 mm (female) – Type 2.4 mm (female)

—



0…40



1.3

(1.2)





2.9

KSА40А-05R-05R

Available

KS40А-05-05

Type 2.4 mm (male) – Type 2.4 mm (male)

—

KSА40А-05-05

Available

KS40А-05R-05

Type 2.4 mm (female) – Type 2.4 mm (male)

—

KSА40А-05R-05

Available

KS50А-05R-05R

Type 2.4 mm (female) – Type 2.4 mm (female)

—



0…50

1.2 (0 -

15 GHz)



7

KSА50А-05R-05R

Available

KS50А-05-05

Type 2.4 mm (male) – Type 2.4 mm(male)

—

1.3 (15 -

40 GHz)

KSА50А-05-05

Available

KS50А-05R-05

Type 2.4 mm (female) – Type 2.4 mm (male)

—

1.4 (40 -

40 GHz)
KSА50А-05R-05
 Available

Specification

Cable assemblies
