Between series 3,5/1,52 mm and 2,4/1,042 mm

Shield attenuation — ≥90 dB

High performance stability for up to 2000 connections

Operating temperature: −60...+85 °C

Low losses and refraction in a band up to 38 Ghz

arrow

Анализатор цепей скалярный, 0,01…4 ГГц с опцией «01P»

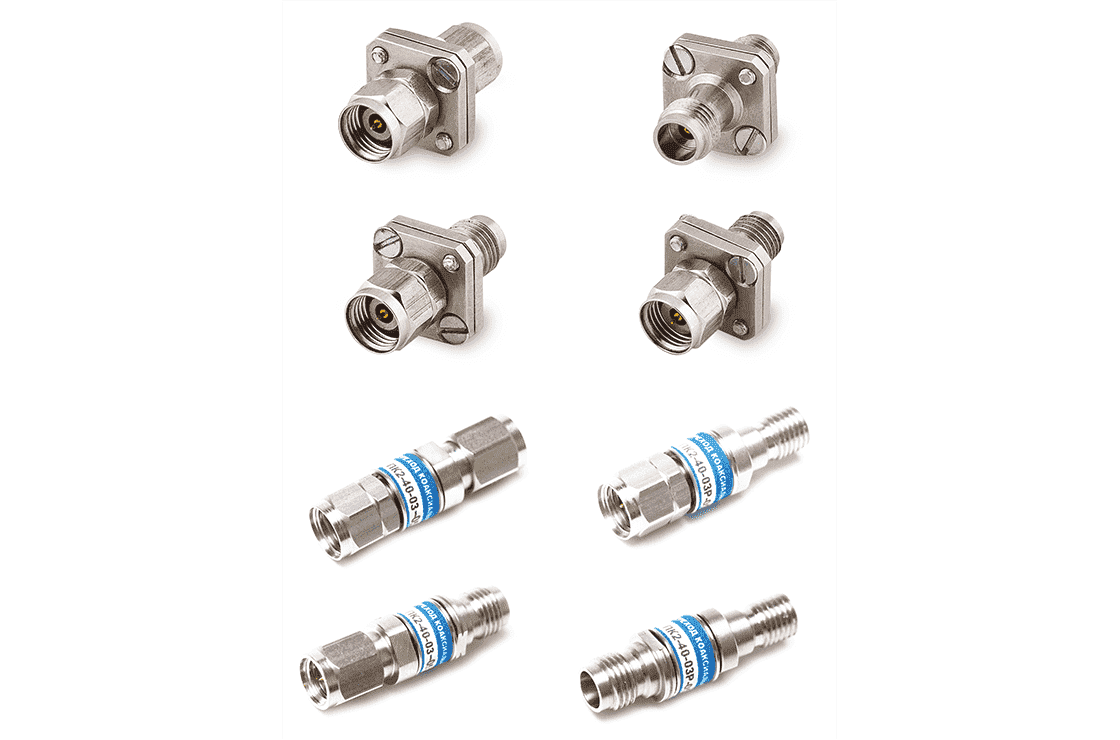

Coaxial adapters of PK2-26 and PK2-40 series are designed for the connection of microwave devices operating in a 3.5/1.52 mm tract with ones in a 2.4/1.042 mm tract. The adapters can have either «male-male», «female-female» or «male-female» connectors type with inch or metric thread on a 3.5/1.52 mm tract side. Connectors body and screws are made of stainless steel. Central conductors are made of tempered beryllium copper and have wearproof gold coating. Applied insulant has a low dielectric conductivity and high durability. On a special request, the adapters can be modified for operating temperature up to +110 °C.

Marking

Connectors

Frequency

range,

GHz

VSWR, max. (typical)

Insertion loss, dB, max. (typ.)

Coaxial adapters PK2-26


0…20 GHz

20…32 GHz

0…20 GHz

20…32 GHz

PK2-26-03R-05R

Type IX, opt. 3 (female) - Type 2.4 mm (female)

0.32

1.1 (1.08)

1.15 (1.1)

0.2 (0.1)

0.3 (0.15)

PK2-26-13R-05R

Type 3.5 mm (female) - Type 2.4 mm (female)

PK2-26-03-05

Type IX, opt. 3 (male) - Type 2.4 mm (male)

PK2-26-13-05

Type 3.5 mm (male) - Type 2.4 mm (male)

PK2-26-03R-05

Type IX, opt. 3 (female) - Type 2.4 mm (male)

PK2-26-13R-05

Type 3.5 mm (female) - Type 2.4 mm (male)

PK2-26-03-05R

Type IX, opt. 3 (male) - Type 2.4 mm (female)

PK2-26-13-05R

Type 3.5 mm (male) - Type 2.4 mm (female)

Coaxial adapters PK2-40

Frequency range, GHz

0…20 GHz

20…38 GHz

0…20 GHz

20…38 GHz

PK2-40-03R-05R

Type IX, opt. 3 (female) - Type 2.4 mm (female)

0.38

1.15 (1.08)

1.2(1.12)

0.2 (0.1)

0.25(0.15)

PK2-40-13R-05R

Type 3.5 mm (female) - Type 2.4 mm (female)

PK2-40-03-05

Type IX, opt. 3 (male) - Type 2.4 mm (male)

PK2-40-13-05

Type 3.5 mm (male) - Type 2.4 mm (male)

PK2-40-03R-05

Type IX, opt. 3 (female) - Type 2.4 mm (male)

PK2-40-13R-05

Type 3.5 mm (female) - Type 2.4 mm (male)

PK2-40-03-05R

Type IX, opt. 3 (male) - Type 2.4 mm (female)

PK2-40-13-05R

Type 3.5 mm (male) - Type 2.4 mm (female)



Specification

3.51.52 mm and 2.41.042 mm
