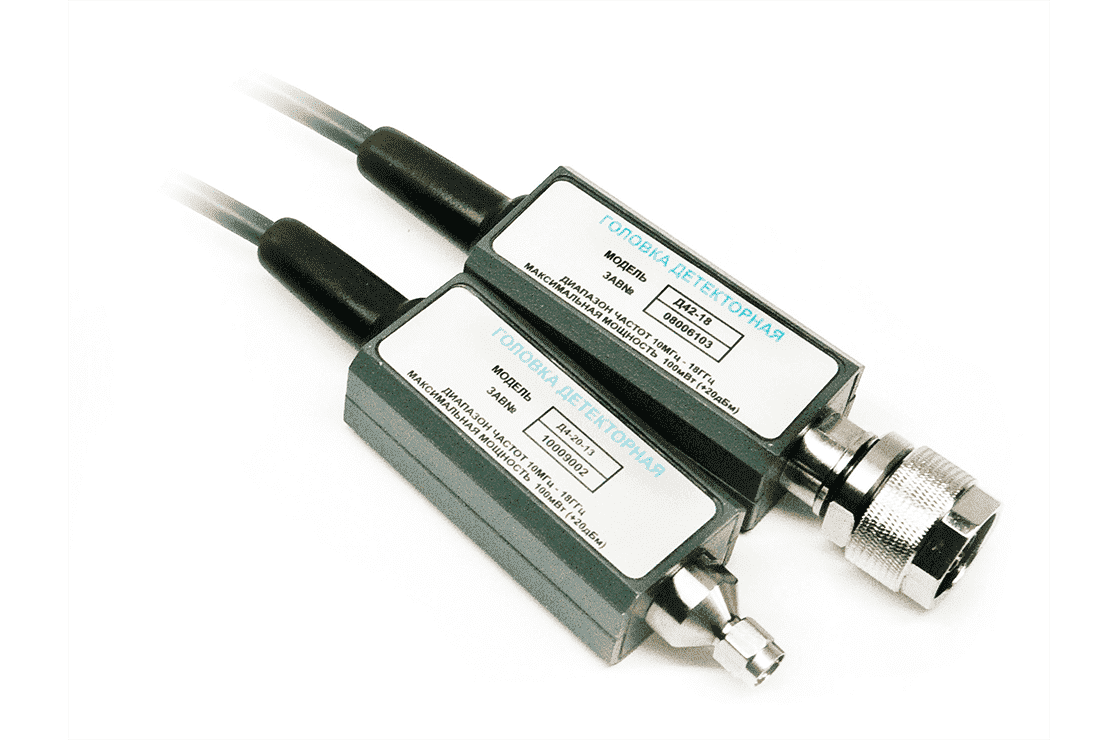

Detector heads D42 series

Up to 3000 connections

Individual calibration

Operation bandwidth up to 40 GHz

Intercepted power range: −55...+15 dBm


Анализатор цепей скалярный, 0,01…4 ГГц с опцией «01P»

D42 detector heads are used with R2M analyzers to detect and measure electromagnetic wave power passing through DUT when measuring transmission coefficient modulus. The D42 detector is a wideband amplitude detector of two-diode circuit design. Microwave connectors are made of durable materials capable to withstand at least 3000 connect/disconnect cycles. Each D42 detector is individually calibrated at factory, which provides precision measurement of absolute power level.
