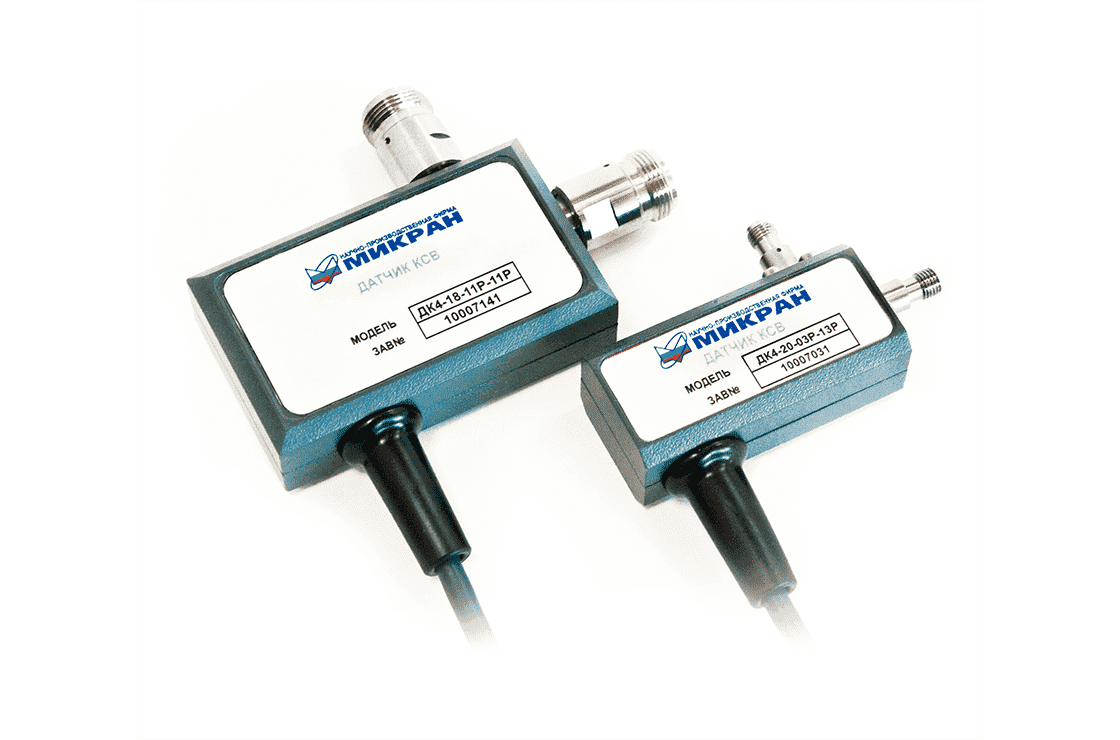

VSWR Detectors DK1 and DK4 series

Up to 3000 connections

Operation bandwidth: 10 MHz to 40 GHz

Wave resistance — 50 Ohm


Анализатор цепей скалярный, 0,01…4 ГГц с опцией «01P»

DK1 and DK4 series SWR detectors are used in R2M analyzers to detect electromagnetic wave reflected from DUT port when measuring reflection coefficient modulus and VSWR. Microwave connectors of SWR detectors are made of durable materials capable to withstand at least 3000 connect/disconnect cycles.


VSWR Detectors DK1 and DK4 series
