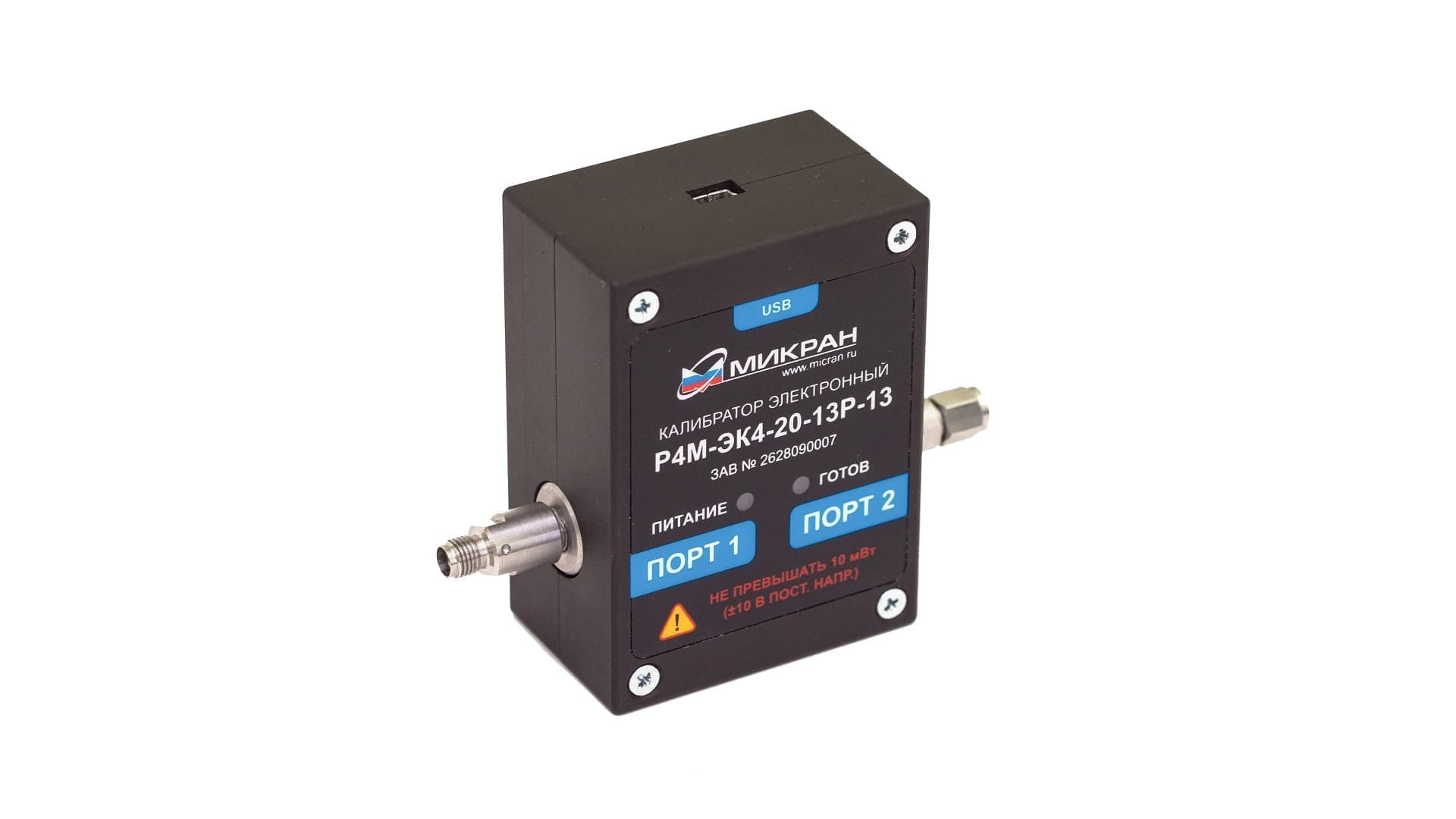

Electronic calibration modules R4M-EK4

Autodetection of vector network analyzer ports connection (Patent No. 2513647);

Specialized GaAs MMIC with constant phase relationships between measures over the entire frequency range (Certificate No. 2016630144);

The device is offered in various connection paths;

Controlled via USB 2.0 interface

arrow

Анализатор цепей скалярный, 0,01…4 ГГц с опцией «01P»

R4M-EK4 automatic calibrators provide automated calibration of vector network analyzers. The key feature of R4MEK4 is an integrated circuit of electronically switched loads manufactured by Micran. To connect the vector network analyzer ports with automatic calibrator additional adapters with NMD connectors on one side and standard 3.5/1.52 mm or 7.0/3.04 mm path connectors on the other side are included.

In contrast with calibration kit, automatic calibrator has an advantage due to convenient operation and quick calibration with comparable accuracy, lower wear and longer retaining of metrological properties.

Specification

Electronic calibration modules R4M-EK4
