Between series 2,92/1,27 mm and 2,4/1,042 mm

Shield attenuation — ≥100 dB

High performance stability for up to 2000 connections

Operating temperature: −60...+110 °C

Low losses and refraction

Add to cart

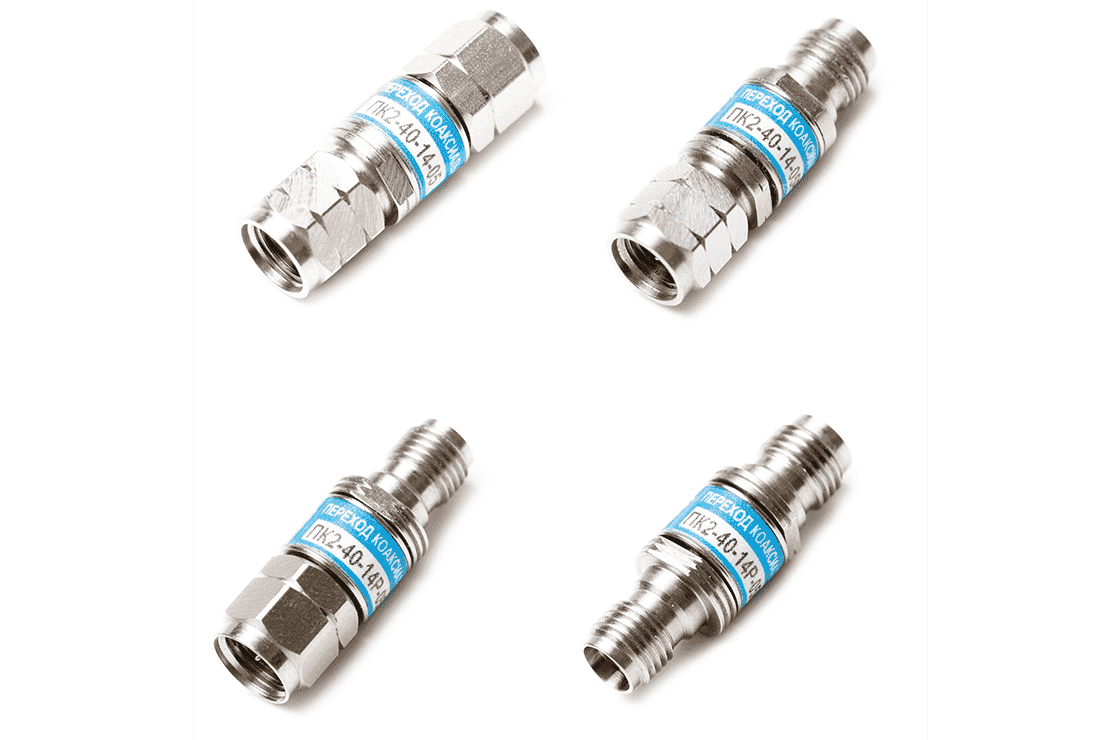

Coaxial adapters of this series are designed for the connection of microwave devices operating in a 2.92/1.27 mm tract with ones in a 2.4/1.042 mm tract. The adapters can have either «male-male», «female-female» or «male-female» connectors type. Connectors body and screws are made of stainless steel. Central conductors are made of tempered beryllium copper and have wearproof gold coating. Applied insulant has a low dielectric conductivity and high durability.

Marking	Connectors	Frequency range, GHz	VSWR, max. (typical)		Insertion loss, dB, max. (typ.)
			0…20 GHz	20…40 GHz	0…20 GHz	20…40 GHz
PK2-40-14R-05R	Type 2.92 mm (female) - Type 2.4 mm (female)	0.40	1.1 (1.05)	1.15 (1.08)	0.2 (0.1)	0.3 (0.15)
PK2-40-14-05	Type 2.92 mm (male) - Type 2.4 mm (male)
PK2-40-14R-05	Type 2.92 mm (female) - Type 2.4 mm (male)
PK2-40-14-05R	Type 2.92 mm (male) - Type 2.4 mm (female)

2.921.27 mm and 2.41.042 mm
