In series 2,92/1,27 mm

Shield attenuation — ≥100 dB

High performance stability for up to 2000 connections

Operating temperature: −60...+110 °C

Low losses and refraction in a band up to 40 Ghz

arrow

Анализатор цепей скалярный, 0,01…4 ГГц с опцией «01P»

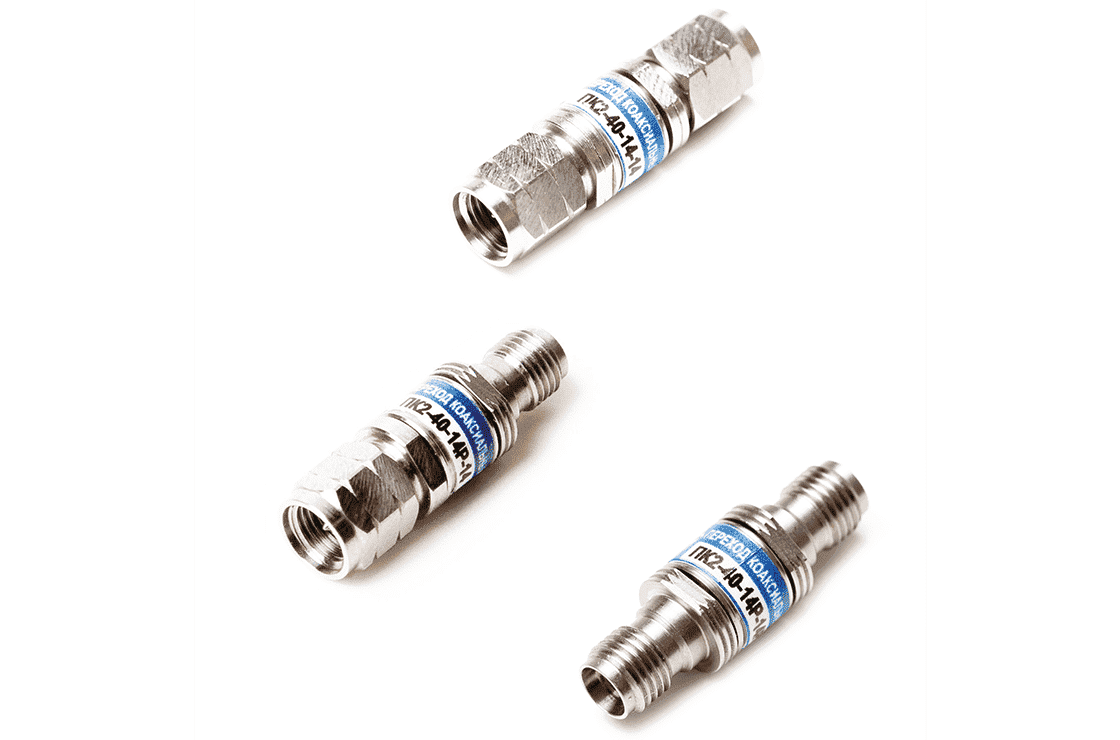

Coaxial adapters for 2.92/1.27 mm tract are used with T&M equipment. The adapters can have either «male-male», «female-female» or «male-female» connectors type with inch or metric thread. This series connectors have minimal insertion losses and refractions in a frequency band up to 40 Ghz. Connectors body and screws are made of stainless steel. Central conductors are made of tempered beryllium copper and have wearproof gold coating. Applied insulant has a low dielectric conductivity and high durability.

Marking

Connectors

Frequency

range,

GHz

VSWR, max. (typical)

Insertion loss, dB, max. (typ.)

0…20 GHz

20…40 GHz

0…20GHz

20…40 GHz

PK2-40-14R-14R

 Type 2.92 mm (female) - Type 2.92 mm (female)

0.40

1.1 (1.06)

1.15(1.08)

0.2 (0.1)

0.3(0.15)

PK2-40-14-14

Type 2.92 mm (male) - Type 2.92 mm (male)

PK2-40-14R-14

Type 2.92 mm (female) - Type 2.92 mm (male)


Specification

2.921.27 mm
