PKM1-32 and PKM1-50 series
High parameter stability with minimum 3000 connection cycles
Operating temperature range −60° C...+110° C
Анализатор цепей скалярный, 0,01…4 ГГц с опцией «01P»

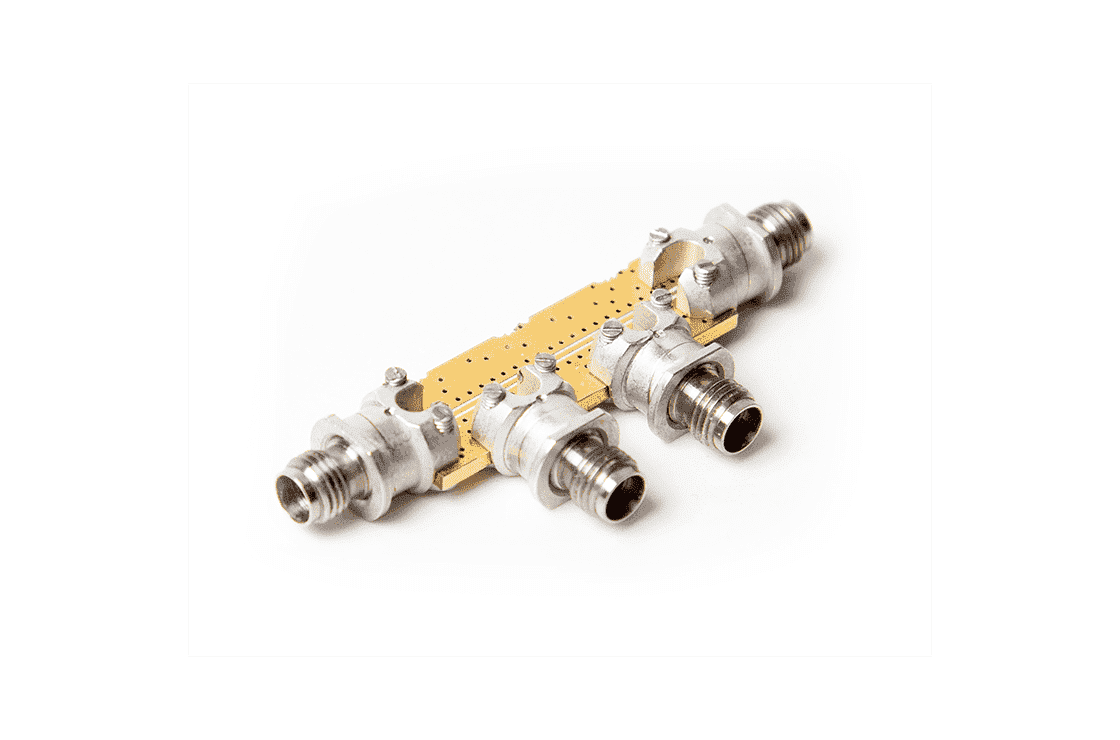

Coaxial-to-microstrip adapters PKM1-32 and PKM1-50 are designed for input-output signals to printed circuit boards. The installation of the adapters on printed circuit boards is carried out by means of two mounting holes. As a part of the PKM1-32 series, MK100M seal is used.
|
Marking |
Connector |
Frequency range, GHz |
VSWR, max |
Insertion loss, dB, max |
Maximum current, A, (maximum operation voltage, V) |
|
PKM1-32-03R-0,3P |
Type IX, opt. 3 (female) |
0…32 |
1,25 |
1 |
0,5 (100) |
|
PKM 1-32-13R-0,3P |
Type 3,5 mm (female) |
||||
|
PKM 1-32-03-0,3P |
Type IX, opt. 3 (male) |
||||
|
PKM 1-32-13-0,3P |
Type 3,5 mm (female) |
||||
|
PKM 1-50-05R-0,3P |
Type 2,4 mm (female) |
0…50 |
1,3 |
Specification
| PKM1-32 and PKM1-50 coaxial-to-microstrip adapters |
