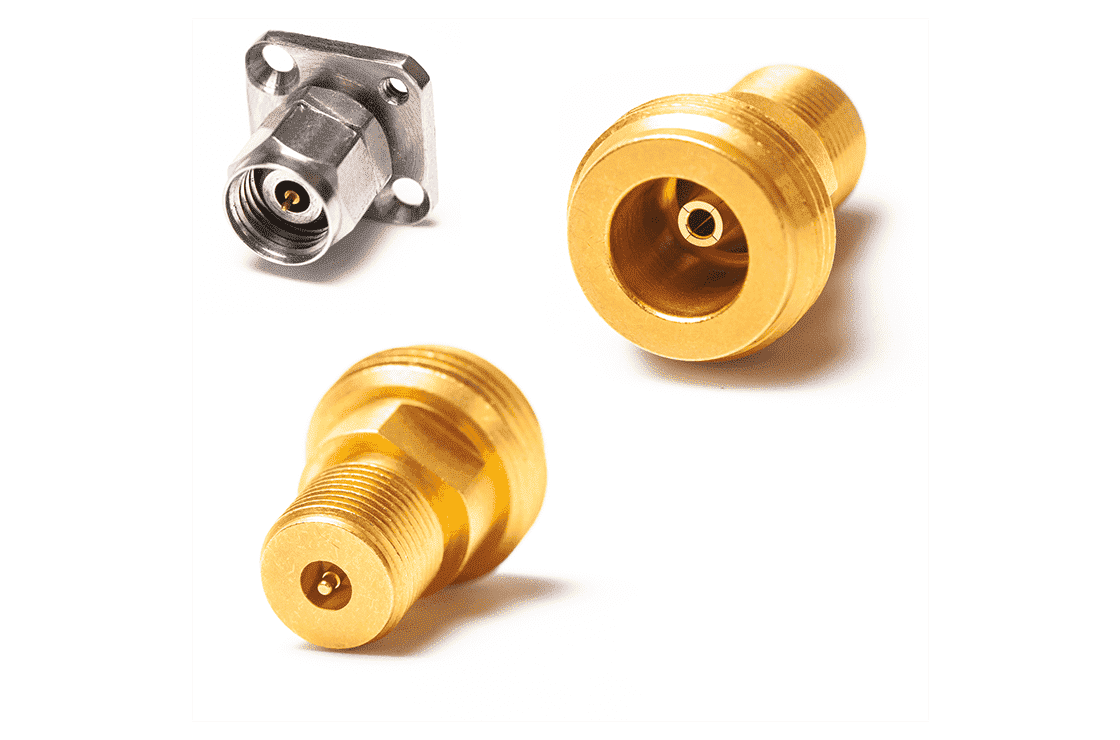

PKM2, PKM2-20 and PKM2-40 series
High performance stability for minimum 2000 connections
Operating temperature: −60...+110 °C
Shield attenuation — ≥90 dB
Low losses and refraction
Анализатор цепей скалярный, 0,01…4 ГГц с опцией «01P»
The main conductor has wearproof gold coating. Adapters bodies are made of stainless steel. Applied insulant has a low dielectric conductivity and high durability.
|
Marking |
Connector |
Coating |
Frequency range, GHz |
VSWR, max. (typical) |
Insertion loss dB, max. (typical) |
|
PKM2-06-01R-0,98/0,4-2 |
Type III (female) |
Gold |
0…6 |
1.25 (1.2) |
1 (0.3) |
|
PKM2-06-01R-0,98/1.9-2 |
|||||
|
PKM2-20-03R-0,3M |
Type IX, opt. 3 (female) |
No |
0…32 |
1.2 (1.15) |
1.7 (1.25) |
|
PKM2-20-03R-0,3D |
|||||
|
PKM2-20-13R-0,3M |
Type 3.5 mm (female) |
||||
|
PKM2-20-13R-0,3D |
|||||
|
PKM2-20-03-0,3M |
Type IX, opt. 3 (male) |
||||
|
PKM2-20-03-0,3D |
|||||
|
PKM2-20-13-0,3M |
Type 3.5 opt. 3 (male) |
||||
|
PKM2-20-13-0,3D |
|||||
|
PKM2-20-03R-0,3F |
Type IX, opt. 3 (female) |
||||
|
PKM2-20-13R-0,3F |
Type 3.5 mm (female) |
||||
|
PKM2-20-03-0,3F |
Type IX, opt. 3 (male) |
||||
|
PKM2-20-13-0,3F |
Type 3.5 mm (male) |
||||
|
PKM2-20-03R-0,3F2 |
Type IX, opt. 3 (female) |
||||
|
PKM2-20-13R-0,3F2 |
Type 3.5 mm (female) |
||||
|
PKM2-20-03-0,3F2 |
Type IX, opt. 3 (male) |
||||
|
PKM2-20-13-0,3F2 |
Type 3.5 mm (male) |
||||
|
PKM2-40-14R-0,3M |
Type 2.92 mm (female) |
No |
0…40 |
1.25 (1.15) |
1.7 (1.25) |
|
PKM2-40-14R-0,3D |
|||||
|
PKM2-40-14R-0,3F2 |
|||||
|
PKM2-40-14R-0,3F |
|||||
|
PKM2-40-14-0,3M |
Type 2.92 mm (male) |
||||
|
PKM2-40-14-0,3D |
|||||
|
PKM2-40-14-0,3F2 |
|||||
|
PKM2-40-14-0,3F |
|||||
|
PKM2-40-05R-0,3M |
Type 2.4 mm (female) |
||||
|
PKM2-40-05R-0,3F2 |
|||||
|
PKM2-40-05R-0,3F |
|||||
|
PKM2-40-05-0,3M |
Type 2.4 mm (male) |
||||
|
PKM2-40-05-0,3F2 |
|||||
|
PKM2-40-05-0,3F |
Notice:
M — screw-in part with metric thread M6×0.75
D — screw-in part with inch thread 1/4"-36UNS-2A
F — 4-hole flange
F2 — 2-hole flange
Specification
